Material:
barrel:
Material: medical and high transparent PP with Plunger stopped ring. Standard: 1ml 2ml 2.5ml 3ml 5ml 10ml 20ml 30ml 50ml 60ml
Plunger :
Material: medical entironment-protect and natural rubber. Standard piston: Made of natural rubber with two retaining rings. Or Latex Free Piston: Made of Synthetic non cytotoxic rubber, free from The protein of the natural latex to avoid possible allergy. According to the ISO9626. Handspike Material: medical and high transparent PP Standard: according to the size of barrel.
Cannula
Material: medical and high transparent PP Colored: according to the size of barrel.
Needle Material: stainless steel AISI 304 Diameter and length: according to ISO standards 9626
Needle Protector Material: medical and high transparent PP Length: according to the length of needle Lubricant Medical silicone (ISO7864) Scale indelible according to the ISO standards

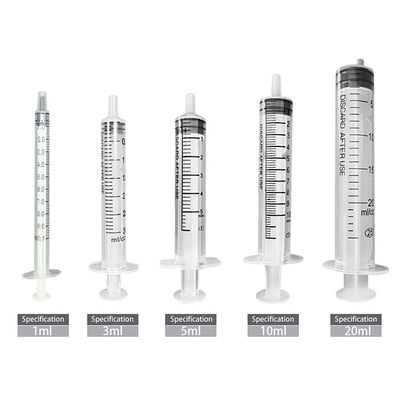

| Specification: | Total length: | Width: | Inner diameter: | Length of needle: |

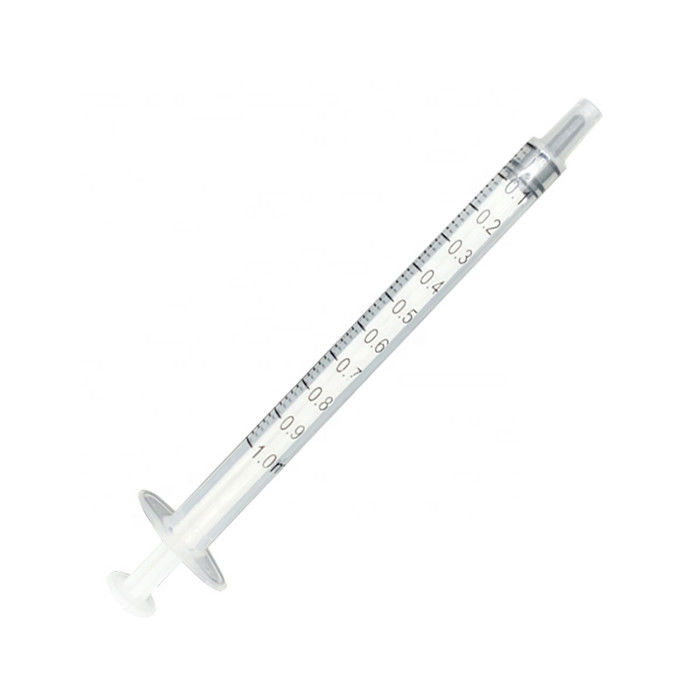

| 1ml | 9.6cm | 0.7cm | 2cm | 3.1cm |
| 3ml | 9.3cm | 1cm | 2cm | 3.1cm |
| 5ml | 9cm | 1.3cm | 2cm | 4.3cm |
| 10ml | 9cm | 1.3cm | 2cm | 5.4cm |
| 20ml | 12.9cm | 2cm | 2cm | 5.6cm |
